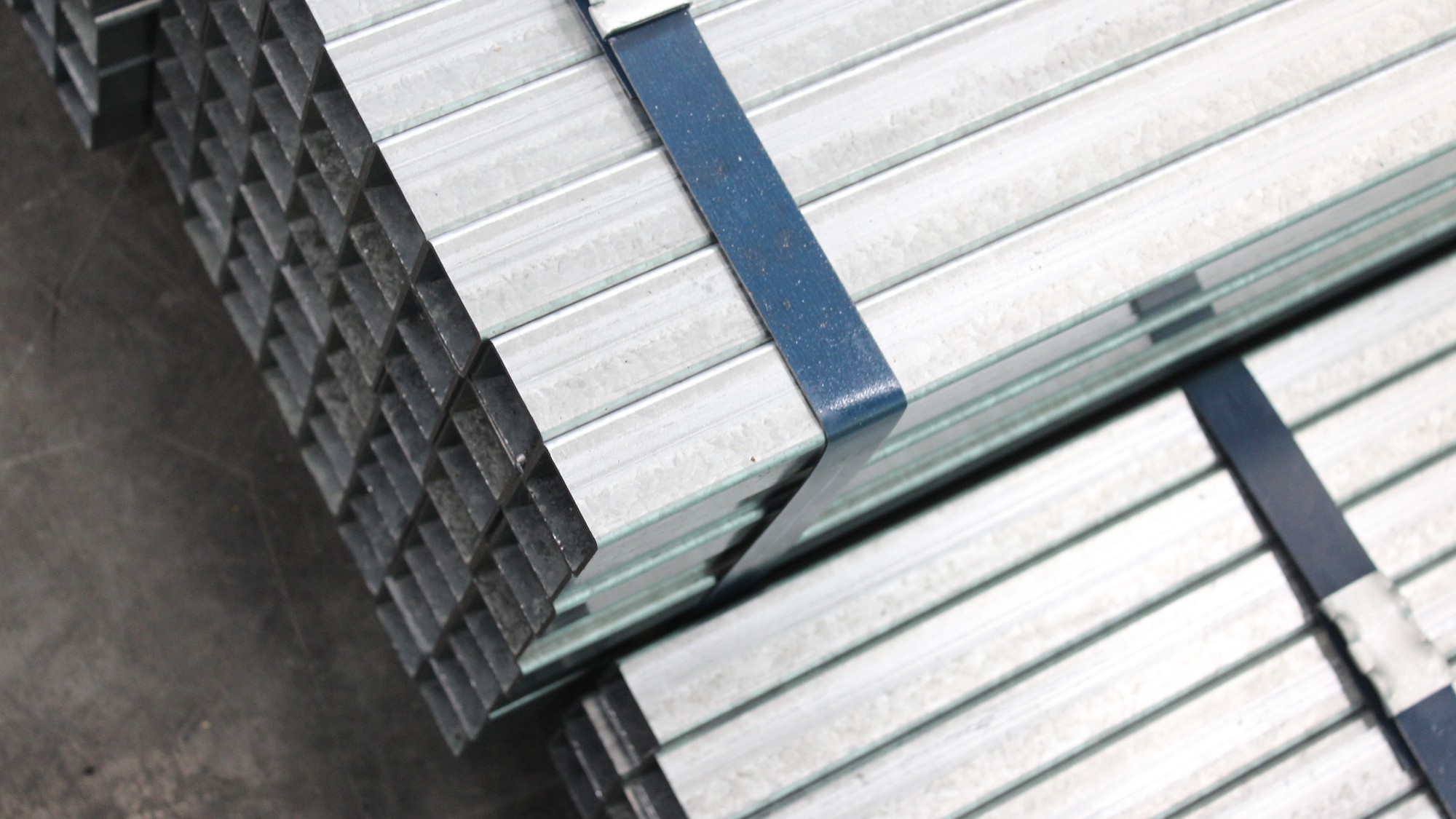

Tuberías PTR

Tuberías rectangulares (PTR)
Largo estándar 6.00 m, excepto cal. 7, 3/16”, 4 y 1/4” a 6.10 m
	Dimensionesen pulg/mm	Calibre	kg/m	kg/pza	pzas/paq	kg/paq
H0705	3/4” x 1/2” (19.0 x 12.7)	20	0.5	3	182	546
		18	0.7	4.2	182	764
		16	0.9	5.4	182	982
H1005	1” x 1/2” (25.4 x 12.7)	20	0.53	3.2	100	320
		18	0.68	4.1	100	410
		16	0.9	5.4	100	540
H1007	1” x 3/4” (25.4 x 19.0)	20	0.7	4.2	100	420
		18	0.9	5.4	100	540
		16	1	6	100	600
H1107	1-1/8” x 3/4” (28.6 x 19.0)	20	0.7	4.2	81	340
		18	0.9	5.4	81	437
		16	1.2	7.2	81	538
H1205	1-1/4” x 1/2” (31.8 x 12.7)	20	0.61	3.69	121	447
		18	0.78	4.66	121	564
		16	0.99	5.95	121	720
H1207	1-1/4” x 3/4” (31.8 x 19.0)	20	0.72	4.29	80	343
H1207	1-1/4” x 3/4” (31.8 x 19.0)	18	0.92	5.54	80	443
H1505	1-1/2” x 1/2” (38.1 x 12.7)	20	0.709	4.25	80	340
H1505	1-1/2” x 1/2” (38.1 x 12.7)	18	0.925	5.54	80	443
H1510	1-1/2” x 1” (38.1 x 25.4)	20	0.9	5.4	100	540
		18	1.15	6.9	100	690
		16	1.5	9	100	900
H1707	1-3/4” x 3/4” (44.5 x 19.0)	20	0.9	5.38	80	430
		18	1.15	6.9	80	552
		16	1.5	9	80	720
H2010	2” x 1” (50.8 x 25.4)	20	1.08	6.48	60	388
		18	1.38	8.3	60	498
		16	1.8	10.8	60	648
		14	2.12	12.72	60	763
		11	3.4	20.44	48	981
H2207	2-1/4” x 3/4” (57.2 x 19.0)	20	1.08	6.47	77	498
		18	1.38	8.3	77	639
		16	2.3	13.8	56	772
		14	2.7	16.2	56	907
H2512	2-1/2” x 1-1/4” (63.5 x 31.8)	20	1.32	7.9	50	395
		18	1.68	10.08	50	504
		16	1.8	10.8	50	540
		14	2.58	15.47	50	773
H2515	2-1/2” x 1-1/2” (63.5 x 38.1)	20	1.41	8.43	54	455
		18	1.8	10.77	54	581
		16	2.4	14.4	56	806
		14	2.83	16.97	54	916
H3015	3” x 1-1/2” (76.2 x 38.1)	22	1.33	7.97	48	383
		20	1.59	9.52	48	457
		18	2.03	12.17	48	584
		16	2.67	16.02	48	768
		14	3.19	19.16	48	919
		11	5.07	30.47	16	488
H3020	3” x 2” (76.2 x 50.8)	14	3.56	21.35	48	1,024
		13	4.4	26.4	48	1,267
		12	5.1	30.6	48	1,468
		11	5.98	35.88	48	1,722
		10	6.73	40.37	48	1,937
		7	8.62	52.57	32	1,682
		4	10.4	62.4	24	1,497
		1/4	11.92	72.72	16	1,163
H4015	4” x 1-1/2” (101.6 x 38.1)	20	1.95	11.7	36	421
		18	2.5	14.97	36	538
		16	3.3	19.8	36	712
		14	3.85	23.12	36	832
H4020	4” x 2” (101.6 x 50.8)	14	4.29	25.72	36	925
		13	5.2	31.2	36	1,123
		12	6	36	36	1,296
		11	7.19	43.17	36	1,554
		10	8.09	48.57	36	1,748
		7	10.43	63.64	30	1,909
		4*	12.6	75.6	24	1,814
		1/4	14.7	88.2	18	1,587
H4030	4” x 3” (101.6 x 76.2)	14	5	30.01	24	720
		13	6.2	37.2	24	892
		12	7.2	43.2	24	1,036
		11	8.41	50.76	24	1,210
		10	9.46	56.76	20	1,135
		7	12.25	74.71	16	1,195
		4*	14.9	89.4	12	1,072
		1/4	16.6	99.6	12	1,195
H5030	5” x 3” (127.0 x 76.2)	14	5.9	35.4	16	566
		13	7	42	16	672
		12	8.2	49.2	16	787
		11	9.5	57	16	912
		10	10.6	63.6	16	1,071
		7	14.6	86.01	16	1,376
		4	17.4	104.4	16	1,670
		1/4	19.4	116.4	16	1,862
H6020	6” x 2” (152.4 x 50.8)	14	5.75	34.48	16	551
		13	7	42	16	672
		12	8.2	49.2	16	787
		11	9.46	56.74	24	1,362
		7	13.51	82.39	24	1,977
		14	6.7	40.2	24	965
H6030	6” x 3” (152.4 x 76.2)	12	8.8	52.5	24	1,260
		11	10.6	63.5	24	1,525
		10	11.9	71.2	24	1,709
		7	15.6	95.2	16	1,524
		4	19.3	115.8	12	1,390
		1/4	21.5	128.7	12	1,545

Calibres y acabados de nuestros productos
Calibres	Negro	Pintado	Galvanizado	Galvanizado barniz verde
20	✔	✔	✔	✔
18	✔	✔	✔	✔
19			✔
16	✔	✔	✔
15			✔
14	✔	✔	✔
13	✔		✔
12	✔		✔
11	✔		✔
1/8 0.125”	✔
10	✔		✔
7	✔
3/16 0.187”	✔
4	✔
1/4 0.250”	✔

Los productos en calibre 11 o más gruesos pueden ser certificados en ASTM A500 grado B a solicitud del cliente.
El peso por pieza y por paquete es teórico. El peso real puede variar.
Productos sujetos a disponibilidad, consulte existencias con su ejecutivo de ventas.

Tuberías cuadradas (PTR)
Largo estándar 6.00 m, excepto cal. 7, 3/16”, 4 y 1/4” a 6.10 m
	Dimensionesen pulg/mm	Calibre	kg/m	kg/pza	pzas/paq	kg/paq
H0505	3/4” x 1/2” (19.0 x 12.7)	20	0.3	2.04	180	367
		18	0.5	2.62	180	471
		16	0.6	3.6	225	810
H0606	5/8” x 5/8” (15.9 x 15.9	20	0.4	2.4	121	290
		18	0.6	3.6	121	436
		16	0.7	4.1	121	508
H0707	3/4” x 3/4” (19.0 x 19.0)	22	0.44	2.67	121	323
		20	0.5	3.2	121	387
		18	0.7	4.1	121	496
		16	0.9	5.4	121	653
		14	1	6.06	121	733
H1010	1” x 1” (25.4 x 25.4)	22	0.6	3.6	64	230
		20	0.7	4.29	64	274
		18	0.9	5.5	64	352
		16	1.2	7.07	64	452
		14	1.4	8.4	64	533
		13	1.7	10.25	64	656
		12	1.9	11.4	64	730
H1212	1-1/4” x 1-1/4” (31.8 x 31.8)	20	0.9	5.38	80	432
		18	1.2	7.2	80	592
		16	1.5	8.89	64	568
		14	1.8	10.53	64	673
		13	2.1	12.6	64	813
		12	2.5	15.14	48	726
		11	2.8	16.8	64	1,075
H1515	1-1/2” x 1-1/2” (38.1 x 38.1)	20	1.1	6.47	64	414
		18	1.4	8.3	64	531
		16	1.8	10.66	64	681
		14	2.2	12.72	64	814
		12	3	17.93	48	860
		11	3.3	20.49	48	983
		10	3.9	23.16	40	926
H1717	1-3/4” x 1-3/4” (44.5 x 44.5)	20	1.26	7.57	64	484
		18	1.61	9.64	64	617
		16	2.05	12.29	64	787
		14	2.52	15.16	64	970
H2020	2” x 2” (50.8 x 50.8)	18	1.9	11.09	64	709
		16	2.5	15.1	56	840
		14	2.9	16.97	56	950
		13	3.5	21.1	56	1,176
		12	4.1	25.02	36	900
		11	4.7	28.6	36	1,029
		10	5.3	32.17	36	1,158
		8	6.2	38.1	24	893
		7	6.7	41.51	36	1,429
		3/16	7.12	43.44	24	1,043
		1/4	9.39	57.27	24	1,374
H2525	2-1/2” x 2-1/2” (63.5 x 63.5)	14	3.7	21.35	30	640
		13	4.4	26.4	30	792
		12	5.1	30.6	30	918
		11	5.9	35.88	30	1,076
		10	6.7	40.37	30	1,206
		8	7.94	47.64	15	715
		7	8.62	52.58	30	1,577
		4	10.4	63.44	15	952
		1/4	11.9	72.59	15	1,089
H3030	3” x 3” (76.2 x 76.2)	14	4.29	25.72	40	1,029
		13	5.2	31.2	40	1,248
		12	6	36	40	1,440
		11	7.2	43.2	40	1,728
		10	8.1	48.77	40	1,943
		8	9.14	55.77	32	1,785
		7	10.43	63.64	32	2,036
		4	12.39	75.6	12	1,814
		1/4	14.45	88.16	24	2,116
H3535	3-1/2” x 3-1/2” (88.9 x 88.9)	14	5.4	32.4	35	1,134
		13	6.2	37.2	35	1,302
		12	7.2	43.2	35	1,512
		11	8.3	50.46	35	1,765
		10	9.3	56.76	35	1,986
		8	10.7	64.2	28	1,798
		7	12.9	74.7	28	2,091
		4	14.9	89.4	21	1,877
		1/4	16.6	99.6	21	2,092
H4040	4” x 4” (101.6 x 101.6)	14	5.9	34.48	30	1,034
		13	7	42	30	1,260
		12	8.2	49.2	30	1,476
		11	9.5	57.01	30	1,710
		10	10.6	64.14	30	1,924
		8	12.8	76.8	24	1,843
		7	14.1	85.78	24	2,058
		4	17.4	106.14	18	1,911
		1/4	19.4	110.05	12	1,320

Calibres y acabados de nuestros productos
Calibres	Negro	Pintado	Galvanizado	Galvanizado barniz verde
20	✔	✔	✔	✔
18	✔	✔	✔	✔
19			✔
16	✔	✔	✔
15			✔
14	✔	✔	✔
13	✔		✔
12	✔		✔
11	✔		✔
1/8 0.125”	✔
10	✔		✔
7	✔
3/16 0.187”	✔
4	✔
1/4 0.250”	✔
